Hopleys Open Web Steel Joists® light weight galvanised open web joists are ideal for domestic flooring applications. They are suitable for both subfloor and particularly first floor applications because of their light weight and easy installation.
They also make fitting for pass through services, such as electrical wiring and plumbing, extremely easy.
They offer a flat surface, good load bearing characteristics and high durability. Our light weight joists reduce flooring dead loads which in turn reduces the size of the supporting members and lowers overall costs.
They allow larger spans, reducing stump and bearer costs and installation time.
Please note: If you are not familiar with Bearer Span Tables or if you need further information please contact your Hopley's Representitive for clarification.
Domestic Joist and Bearer Tables
Mezzanine Floors/Light Industrial Workrooms / Storage up to 2.4m high / General Industrial Mezzanines.
Domestic Flooring - Maximum Allowable Span
| Load | Spacing (mm) | HJ150 | HJ200 | HJ250 | HJ300 | HB300 | HB350 | HB400 | HB450 |
|---|---|---|---|---|---|---|---|---|---|
| Live Load 3.0kPa |
450 600 |
3.5 3.2 |
4.2 3.8 |
4.8 4.3 |
5.5 5.0 |
6.5 6.0 |
7.3 6.6 |
8.0 7.2 |
8.7 7.9 |
| Live Load 5.0kPa |
450 600 |
3.1 2.8 |
3.8 3.5 |
4.5 4.0 |
5.1 4.6 |
5.8 5.2 |
6.5 6.0 |
7.2 6.5 |
8.0 7.2 |
Dead Load = 0.25kPa, Maximum Deflection = Span/500
Workshops / Factories / Classrooms / Offices / Commercial Kitchens / Gymnasiums / Shops.
Domestic Bearer Span Table - Maximum Allowable Span
| Load Width | HJ150 | HJ200 | HJ250 | HJ300 | HB300 |
|---|---|---|---|---|---|
| 1800 | 2400 | 2900 | 3500 | 4000 | 4500 |
| 2400 | 2200 | 2700 | 3200 | 3600 | 4100 |
| 3000 | 2000 | 2500 | 2900 | 3200 | 3800 |
| 3600 | 1900 | 2300 | 2600 | 3000 | 3500 |
| 4200 | 1800 | 2100 | 2400 | 2800 | 3300 |
| 4800 | 1700 | 2000 | 2300 | 2600 | 3200 |
Dead Load = 0.3kPa, Maximum Deflection = Span/500
Live Load 1.5kPa, Load Width = Add the joist spans on both sides of the bearer then divide by 2

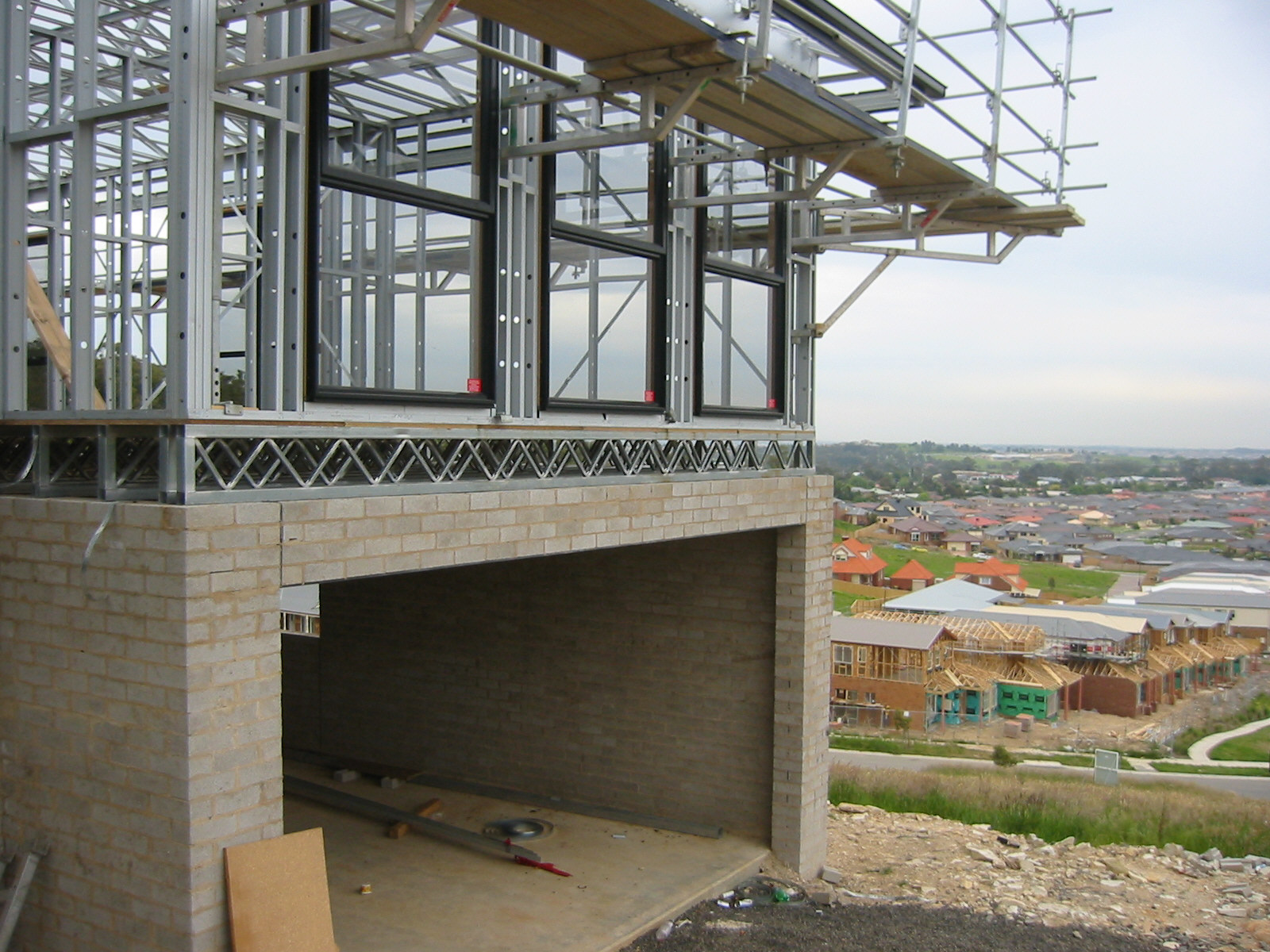

100-0006_IMG

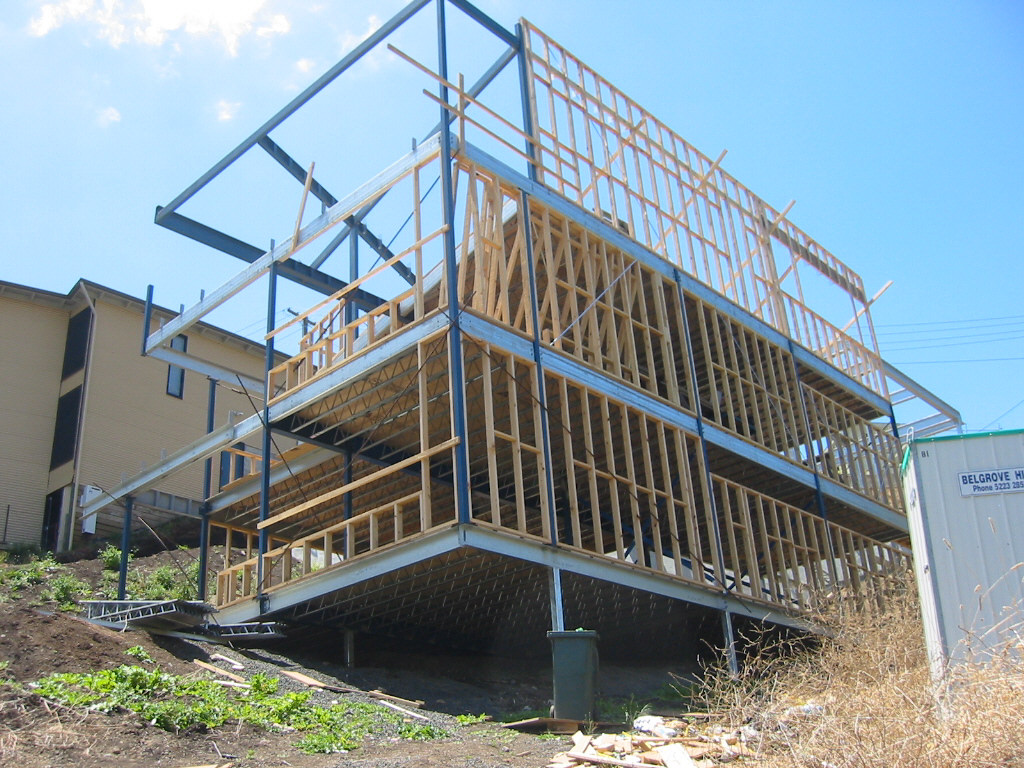

100-0010_IMG

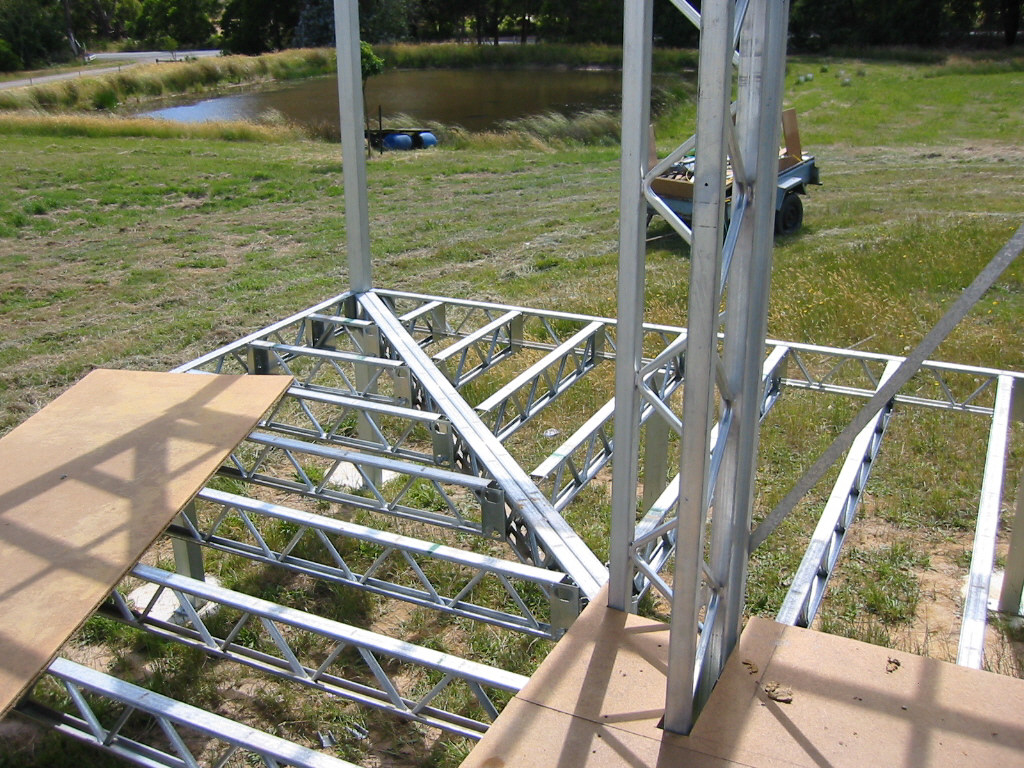

136-3616_IMG
136-3618_IMG

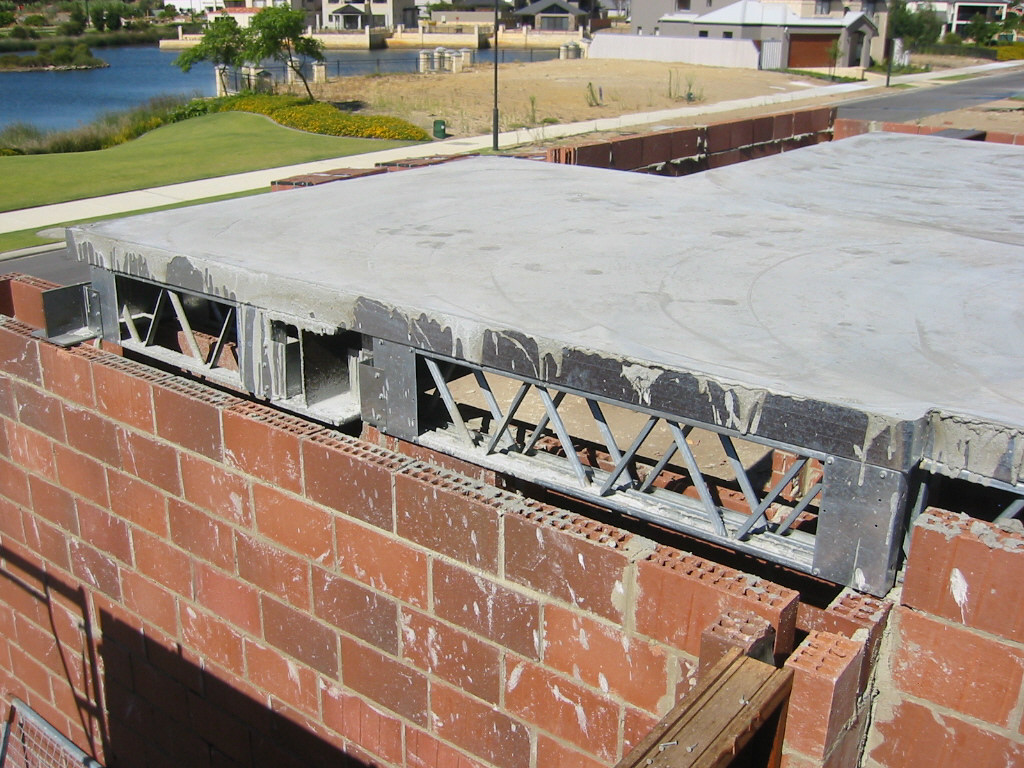

144-4444_IMG

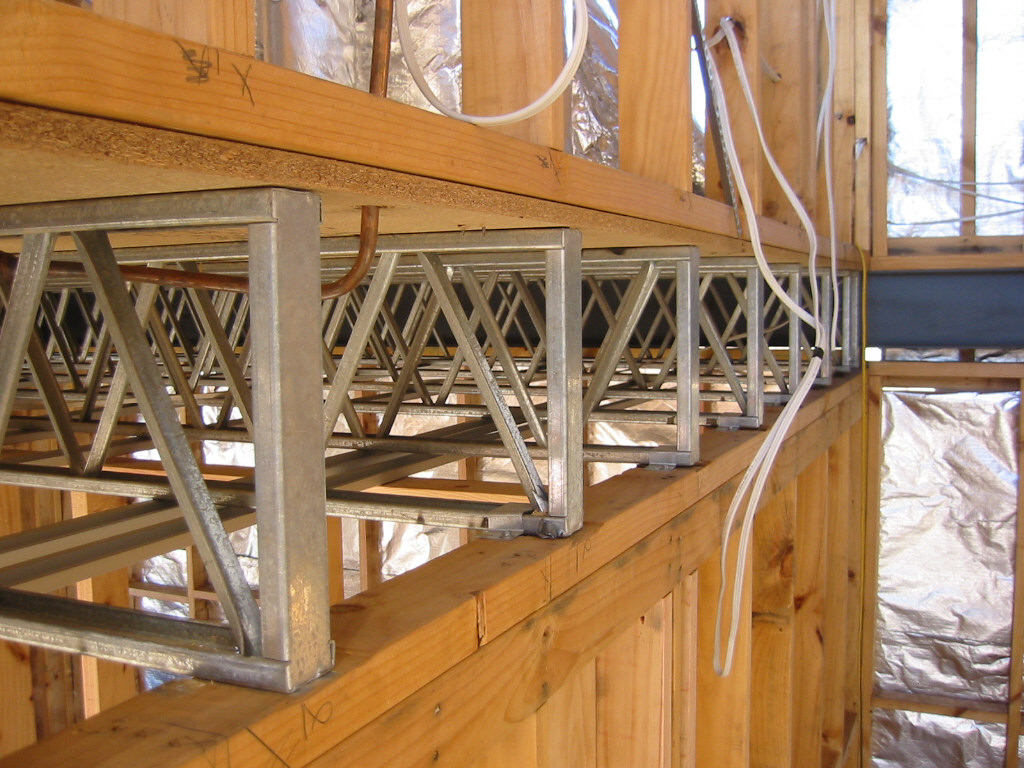

144-4459_IMG

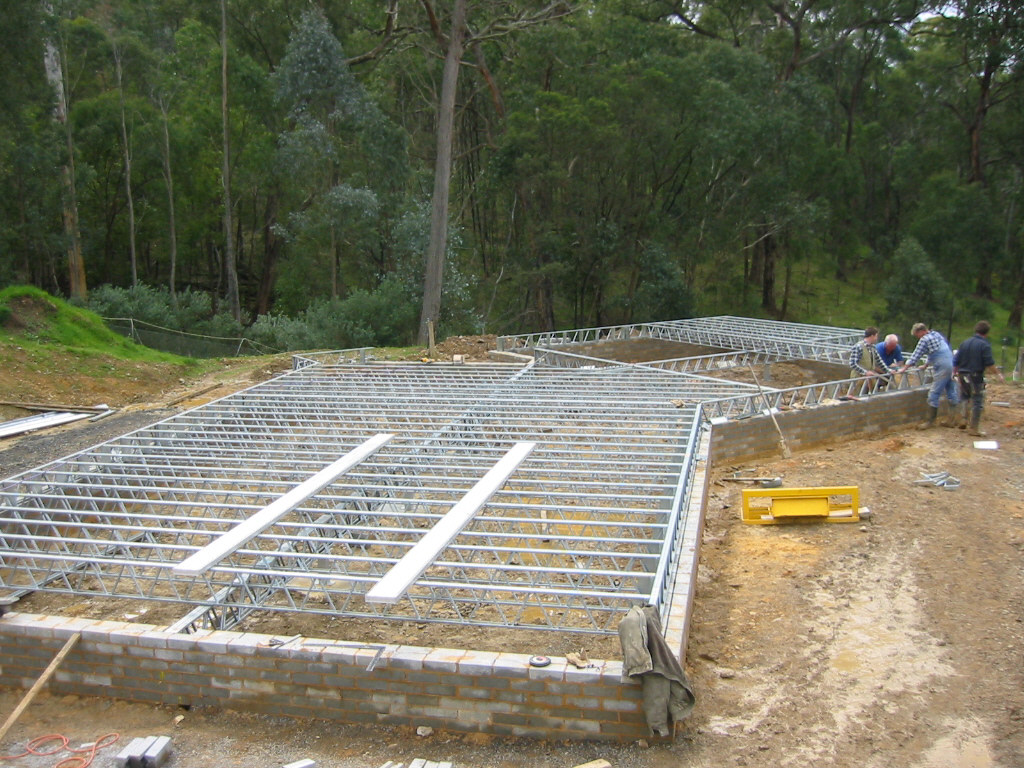

164-6478_IMG

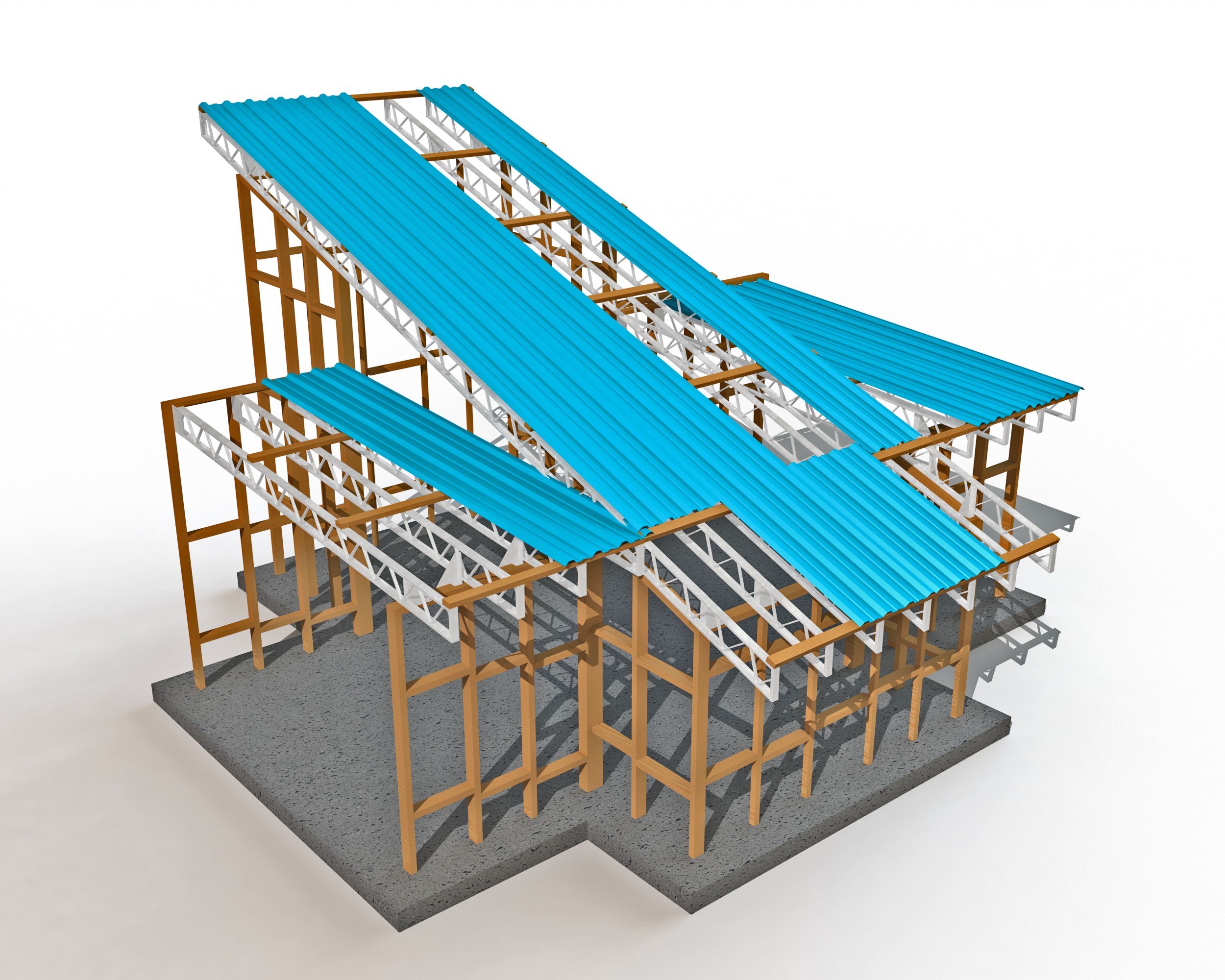

Roofing
